Assembly Instructions for e-chain® triflex® R - TRL

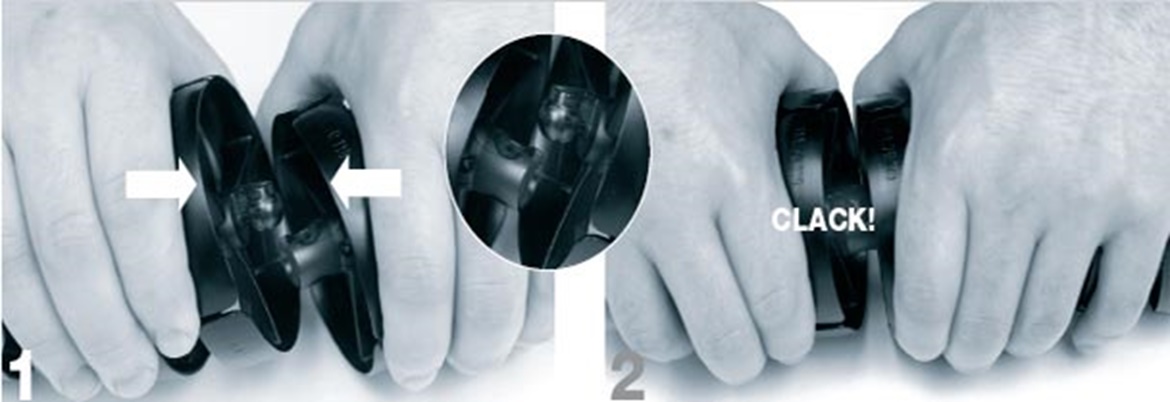

Joining: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL.100 - TRLF.100

Assembly Instructions for triflex® R TRL Very easy to assemble - simply press the ball into the socket, ready!

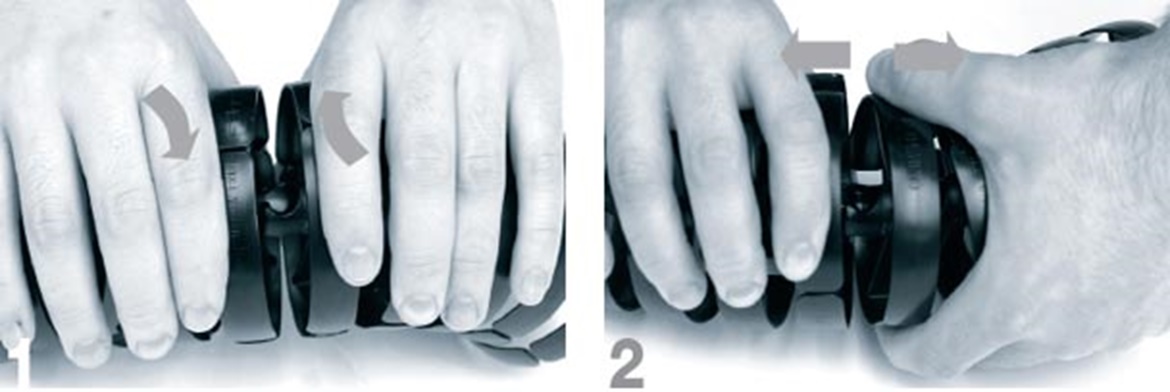

Separating: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL-100 - TRLF.100

Assembly Instruction for triflex® R TRL Just twist the ball slightly to remove it from its socket

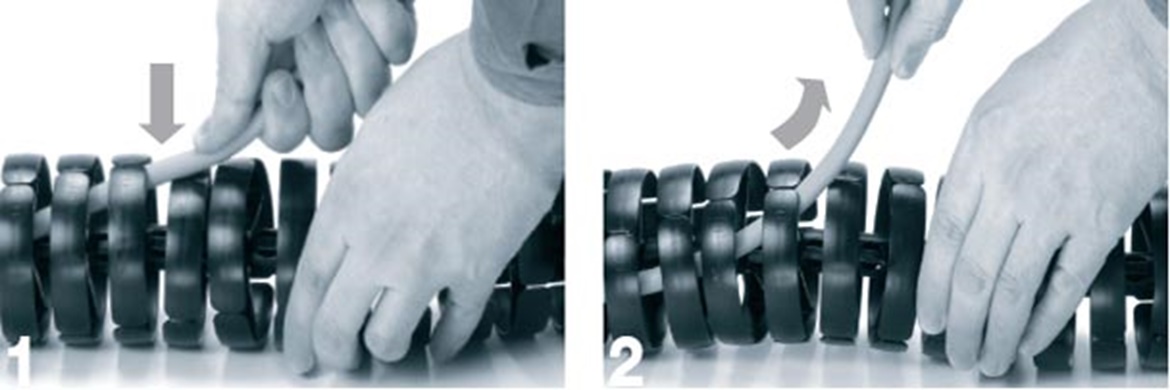

Filling: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL.100

Assembly Instructions for triflex® R TRE Easy to fill - simply press cable in... ...and easy to take the cables out

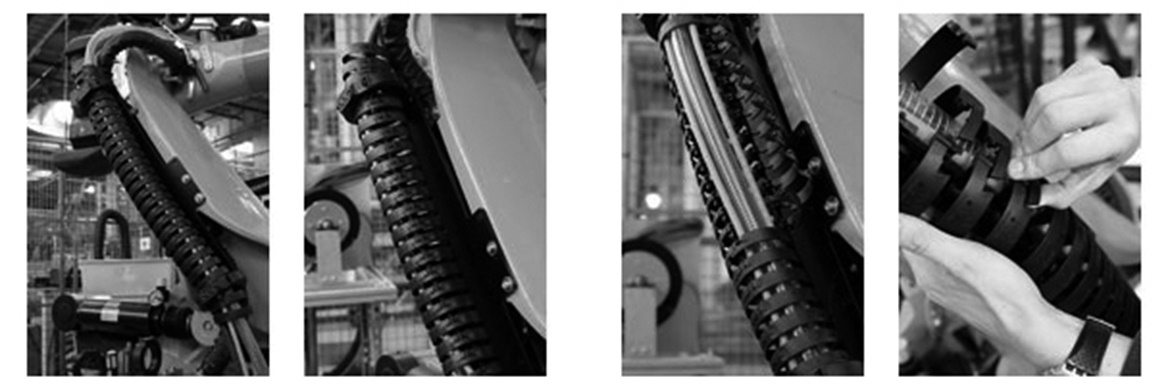

Filling: TRLF. 100

Assembly instructions for triflex® R TRLF Simply snap open the chain links and insert cables

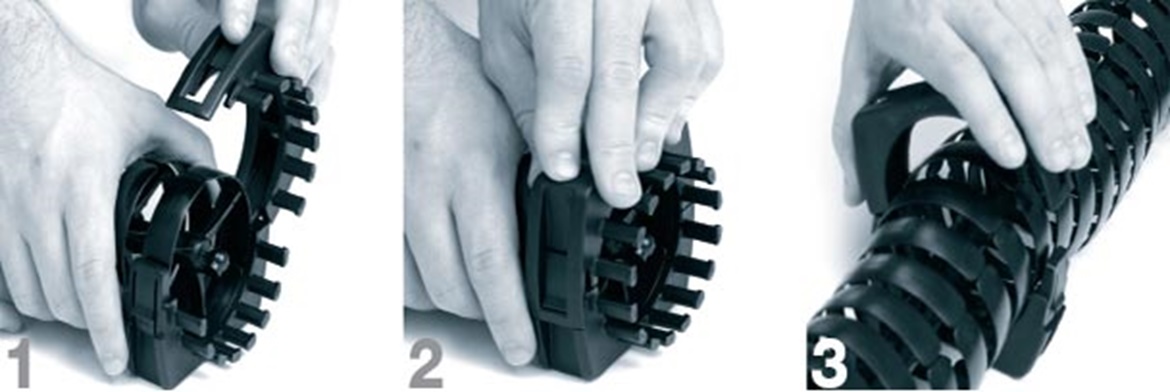

Mounting bracket installation - in this case, a "light" bracket with an intermediate connection

Assembly Instructions for triflex® R TRL Easy assembly - open the mounting bracket, install the chain and snap the mounting bracket shut again. To open, push a screwdriver against one side and pry apart.

triflex® TRL - Installation - Video
