E4/4 시스템 용도

E4/4 시스템은 매우 긴 이동 거리 및 비지지 사이드 마운팅의 두 분야에 적용됩니다: 두 체인 링크 간의 "텅 앤 그루브”으로 인해 이러한 특성이 가능합니다. 압축력과 안정성이 향상되고, 우천과 거친 날씨에 대한 내성이 강화되었습니다. 특수 롤러 체인링크를 사용하여 E4/4는 진정 장거리 이동 분야에 탁월한 능력을 보입니다 언더컷(undercut) 설계(주어진 그루브에 간단하게 장착)도 이와 유사한 우수한 ESD/ATEX 성능을 줍니다. 체인 링크가 서로 접촉하게 되면 전기가 통할 수 있으므로 서로 견고하게 열결됩니다 (주의: 이것은 특수한 전도성 물질 igumid ESD에 대해서만 타당하며 이 카탈로그의 표준 시리즈에는 적용되지 않습니다)

대표적인 산업 부문과 용도

RTG, quayside cranes, many other types of cranes, composting plants, plaster, concrete, chemical and mineral plants, as well as agricultural plants, machine tools: Unsupported, side-mounted applications in construction machines, ESD applications, heavy machinery, steel works, shipyards, welding plants.

E4/4 용의 개요

Plastic energy chain for high levels of hydrochloric acid in indoor cranes

An energy chain and plastic trough made of chemical-resistant plastic have been used successfully in this hot galvanising plant for years.
Plastic energy chain for high levels of hydrochloric acid in indoor cranes

Energy chain in open-air storage facility for alumina production

Design and installation of a roller energy chain for outdoor use on a bauxite stockpile - an environment with extremely harsh ambient conditions.
Energy chain in open-air storage facility for alumina production

X-ray device

This flexible system can take x-ray images without moving the patient.
X-ray device

Helicopters

Lighter components for aviation applications by avoiding separators.
Helicopters

Rocket launch site

The igus products used are designed for moving applications in such a way that they have a long service life and are absolutely reliable.
Rocket launch site

Plastic energy chain on 550-metre travel in bulk handling

Under extreme conditions such as heavy dust and dirt, this low-maintenance plastic energy chain ensures safe operation.
Plastic energy chain on 550-metre travel in bulk handling

Energy chain for stackers on 615m travel without failure for 10 years

A plastic energy chain travels 615m in length in the Czech lignite-fired power plant in Tušimice. It has been in operation for 10 years without any downtime.
Energy chain for stackers on 615m travel without failure for 10 years

Lubrication-free plastic energy chain operates fail-safe in steel mill

In this steel mill, a metal chain was replaced by a plastic energy chain that has been fail-safe since 2007, together with chainflex cables designed for moving applications.
Lubrication-free plastic energy chain operates fail-safe in steel mill

Composting plant

Heat, abrasive dirt, high atmospheric moisture: These are only some of the ambient conditions in a composting plant.
Composting plant

Roller energy chain on ship unloaders over 400m travel

On a 441.3 m travel, a roller energy chain reduces the drive power by 75%
Roller energy chain on ship unloaders over 400m travel

Streetcar switches

The applied material repels chips with temperatures up to 850° C without leaving a trace.
Streetcar switches

Energy chain at the bulk goods ship loader in the Baltic Sea port of Wismar

Since the ship loader started operations in 2000, no troubles, either mechanical or in the cables, have occurred in the energy chain area.
Energy chain at the bulk goods ship loader in the Baltic Sea port of Wismar

Wood industry

The igus® preassembled energy chains create a lasting, low-wear connection to the tools.
Wood industry

Completely pre-assembled energy supply for gondola lift in fairground ride

Robust, safe, UV-resistant: A pre-assembled energy chain ensures the power supply to the lift at the funfair as well as quick set-up and dismantling.
Completely pre-assembled energy supply for gondola lift in fairground ride

Offshore industry

Tube handling plant provides an igus® plastic e-chain®. e-chain® ensures high stability and reliability in pipehandling.
Offshore industry

Loading and unloading facility

Rigorous requirements imposed on the energy supply: Cycle times and narrow bend radii are a considerable strain on energy supply and lines.
Loading and unloading facility

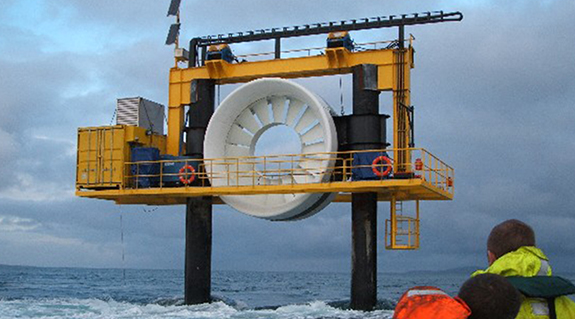

OpenHydro tidal turbine

A plastic chain makes any kind of maintenance on the open sea obsolete; a conventional metal chain would not be adequate for the combination of technical, climatic and mechanical requirements.
OpenHydro tidal turbine

Handling system ”roboLoop“

The ”roboLoop“ system itself offers manyways to optimise the fabrication sequences.
Handling system ”roboLoop“

Saw mill

Even sawdust does not constitute any problem for igus® e-chains®.
Saw mill

Tunnel boring machine

This machine moves deeply through the earthand is used to drill tunnels using the excavationby mining technique.
Tunnel boring machine

Plastic e-chains® replace steel versions

After six months they used to be finished; finally no more failure thanks to plastic e-chains®.
Plastic e-chains® replace steel versions

Indoor and outdoor cranes

Outdoor cranes must withstand harsh weather conditions. Indoor cranes also work under alternating moisture influences with simultaneous extremely high temperatures.
Indoor and outdoor cranes

Meyer Werft in Papenburg

Eight gantry cranes connected in series travel a total length of 180 m with plastic energy chains.
Meyer Werft in Papenburg

Conveyor unit of coal excavator

The winner of this year’s golden vector is also the longest travel ever to be realised with plastic energy chains in the world.
Conveyor unit of coal excavator

Wind tunnel scales

These scales which are used for tests in the wind tunnel can be turned through 180° in both directions away from their original position.
Wind tunnel scales

Further interesting applications from extremely diverse areas can be found here.
